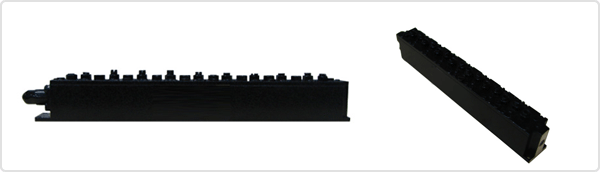

[X-Band RX CH Filter] [X-Band TX CH Filter]


Item
Specifications
RX CH Filter
TX CH Filter
   Frequency Range
7150 ~ 7720MHz (CH1 ~10) CH : Fc กพ 36.25งึ
   Insertion Loss (Max.)
2.5dB 1.4dB

   Ripple (max.)

Pass Band 0.8dB 0.7dB
In Band(16MHz)
0.7dB 0.6dB
   Return Loss (Min.)
17dB
   Attenuation(Min.)
100dBc @ Fc กพ 88.75MHz 40dBc @ Fc กพ 73.5MHz
70dBc @ Fc กพ 88.75MHz
   In Port
SMA-Female SMA-Female(R/A)
   Out Port
SMP - Male
   Temperature Range
-40กษ~+65กษ
