Item
|
Adjacent |
Non-Adjacent |
Insertion
loss(Max.) |
|
|
Pass
CH fc |
0.8dB |
0.5dB |
fc¡¾2.79§Ö |
1.6dB |
0.7dB |
Ref.
CH fc |
0.2dB |
0.2dB |
fc¡¾2.79§Ö |
1.6dB. |
0.2dB |
VSWR(Max.) |
1.1 : 1 |
Isolation(Min.) |
30dB |
Group
Delay(Max.) |
|
|
Pass
CH |
800ns |
300ns |
Ref.
CH |
800ns |
300ns |
Leakage
to Dummy(Min.) |
14dB |
17dB |
Operating
Temp. |
-10¡É~+45¡É
|
Input
power(Max.) |
100W
|

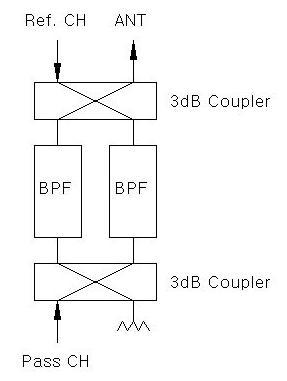

| [Block Diagram] |
|
 |
|
|
|
|
