Item
Specifications
Frequency Range
174.512~197.504MHz
(CH 7~CH10)
198.512~215.504MHz
(CH 11~CH13)

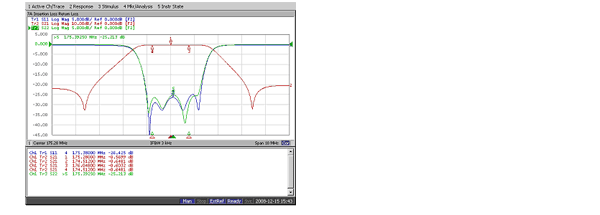

Insertion Loss(Max.)
1.0dB
1.2dB
Ripple (Max.)
0.5dB
0.5dB
Return Loss (Min.)
20dB
Attenuation (Min.)
40dBc @ Fc กพ 3.25MHz
Coupling
20dB กพ 1dB
Coupling Directivity (Min.)
Forward
20dB
Reverse
15dB
Temperature Range
-10กษ ~ +45กษ

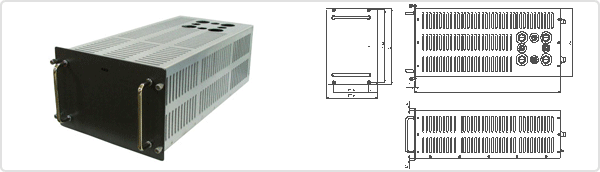

Size (W x D x H ) (mm)
261.6 x 500.0 x 177.0
Power Rating (Ave.)
10W
In/Out Port
N - Female
Weight (Max.)
10Kg
